Shenzhen Lean Kiosk Systems CO., LTD
Product Details
| Place of Origin: | kiosk manufacturer |
|---|---|
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS8343 |
Payment & Shipping Terms
| Min Order: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 1000-2000 units per month |
Detailed Product Description

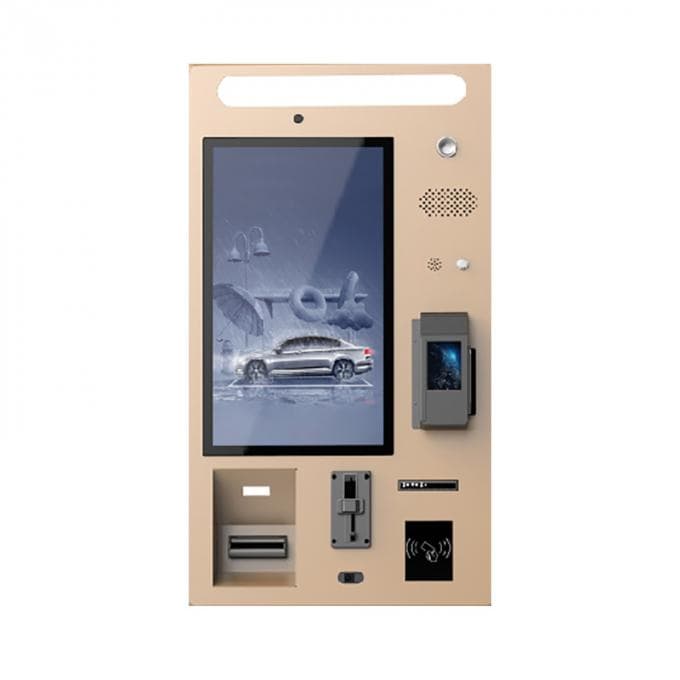

Parking Payment Kiosk With 21.5 Inch High Brightness Touch Screen Cash Credit Card QR Code NFC Payment made by LKS with hgih quality material, is one type and size of our parking payment kiosks. This parking payment kiosk is a comprehensive, self-service solution for modern parking management. Featuring a 21.5" high-brightness touch screen and versatile payment options—including cash, credit card, QR code, and NFC payments—it streamlines the parking experience for users. The kiosk boasts industrial-grade hardware with a dual-core processor, 2GB to 8GB RAM, and a 500GB HDD, ensuring reliable performance. The touch screen offers high precision, durability, and a 50 million-touch life expectancy. It supports various card types and prints receipts via an Epson thermal printer. With robust, moisture-proof, and anti-dust steel casing, this kiosk is ideal for outdoor and indoor parking environments.
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2GB /4 GB / 8GB | |
| HDD | 500G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD monitor | Screen Size | 21.5 inch |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | 15inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va | |
| Max time for supplying a single PC | 3~20minutes (for single PC) | |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Packing | Security Packing method with bubble foam and wooden case | |
Size & Clarity: The large, high-brightness screen (250cd/m²) ensures excellent visibility even in outdoor environments, providing a smooth user experience in both daytime and nighttime.
Durability: The touchscreen is designed for long-lasting performance, with over 50 million touches, high precision, and high transparency.
Cash Payment: A cash acceptor allows users to pay for parking in cash, ideal for a wide range of customers.
Credit Card & NFC Payment: Supports various card types (Magcard, IC Card, Mifare, etc.) and NFC payments, making it easy for customers to pay using their smartphones, contactless cards, or other mobile payment methods.
QR Code Payment: Allows customers to pay through a simple QR code scan, reducing wait times and enhancing convenience.
This parking payment kiosk features industrial-grade components such as a dual-core processor, 2GB-8GB RAM, and a 500GB HDD. This robust setup ensures the kiosk can handle high-traffic environments with speed and reliability.
Receipt Printer: Integrated Epson thermal printer for quick receipt printing (80mm width, 150mm/s printing speed).
Custom Peripheral Options: Ability to integrate additional features such as barcode scanners, RFID readers, and intercoms as per the site’s requirements.
Compatible with Windows 7 or XP for easy integration into various operational systems, ensuring smooth implementation in any parking environment.

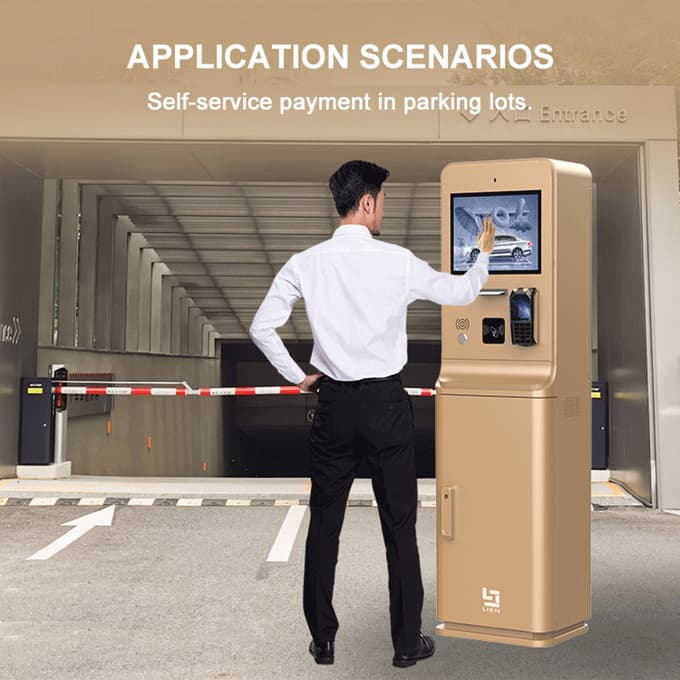

Parking Lots: Ideal for use in parking garages, parking lots at shopping malls, office buildings, or any facility with paid parking.
Retail and Commercial Spaces: Suitable for busy retail centers, shopping malls, and commercial properties where quick and efficient payment solutions are needed.
Fuel Stations: Can be adapted for fuel stations, where payment for parking after refueling is necessary.
Public Spaces: Perfect for public parking areas where automation can improve speed and reduce dependency on human attendants.
Enhanced User Experience: The 21.5" touch screen provides a clear and intuitive interface, reducing transaction time and improving user satisfaction.
All-in-One Solution: With cash acceptor, credit card reader, NFC, and QR code payment support, the kiosk offers multiple payment options, catering to a wide range of customer preferences.
Cost-Effective: Reduces the need for on-site staff, lowers operational costs, and increases service efficiency.
24/7 Availability: Self-service functionality ensures the kiosk is available round the clock, enhancing convenience for users at any time.
Rugged & Weather-Proof Design: The kiosk's durable steel frame and moisture-proof, anti-dust features make it suitable for both indoor and outdoor use.
Payment System Flexibility: Customizable to support additional peripherals like RFID readers, barcode scanners, or ticket printing.
Software & Branding: Customizable UI/UX design and logo placement options for businesses seeking a branded experience.
Hardware Configurations: Adaptable for specific needs with options for different screen sizes (from 8" to 65") and more powerful processors (I3/I5/I7).
Optimal Screen Size: The 21.5-inch screen offers a balance between visibility and space efficiency. It’s large enough to provide a clear and user-friendly interface without taking up too much physical space. This screen size is ideal for both outdoor and indoor settings, delivering easy-to-read instructions and payment options.
Multiple Payment Options: Offering multiple payment options (cash, credit cards, QR codes, and NFC) ensures the kiosk serves a broad customer base. This versatility accommodates both traditional users and those who prefer modern, contactless payment methods, increasing convenience and reducing friction during transactions.
High-Traffic Areas: In places like shopping malls, airports, or office buildings, where many drivers need to pay for parking, this kiosk helps streamline operations, reducing queues and wait times.
24/7 Operation: Ideal for locations that require round-the-clock parking payment availability without the need for on-site staff.
Urban & Outdoor Environments: With its high-brightness screen and robust build, it is the best choice for both indoor and outdoor parking environments, able to handle extreme weather conditions while maintaining functionality.
| Step | Action | Details |
|---|---|---|
| 1 | Unboxing and Inspection | Open the package carefully and inspect all components, including the kiosk body, cash acceptor, and card reader. Ensure no parts are damaged. |
| 2 | Assembling the Kiosk | Attach the base and mount the touch screen securely. Connect all internal components, including the PC system, receipt printer, and power supply. |
| 3 | Powering On | Connect the power supply to the kiosk and power it on. Ensure that the screen and payment modules (cash acceptor, card reader, printer) are functioning properly. |
| 4 | Software Configuration | Install the kiosk’s operating system (Windows 7 or XP) and configure the software for payment processing. Integrate with the parking management system as required. |
| 5 | Testing | Run a series of tests for all payment options (cash, credit card, NFC, QR code) to ensure they work smoothly. Perform printer test and ensure receipts are being printed correctly. |
| 6 | Final Setup and Placement | Once tested, place the kiosk in its designated location. Ensure that the area is secure and the kiosk is accessible to users. |
| Service | Details |
|---|---|
| Installation Support | Free remote support for installation and setup via video call or email. |
| Training | On-site or remote training for kiosk operators on system usage and maintenance. |
| Technical Support | 24/7 technical support via phone, email, or chat for troubleshooting. |
| Maintenance | Regular software updates and hardware inspections available annually or per agreement. |
| Warranty | 12-month standard warranty with extended options available. |
| Spare Parts | Availability of replacement parts (e.g., screen, card reader, printer) as needed. |
| Software Updates | Free software updates during the warranty period, including bug fixes and improvements. |
This parking payment kiosk supports multiple payment methods, including cash (via a cash acceptor), credit cards (magnetic cards, IC cards, Mifare), NFC (contactless payments using smartphones or cards), and QR code payments. The kiosk is designed to accommodate a wide range of customers, making it ideal for busy parking environments.
The 21.5-inch high-brightness touch screen ensures clear visibility even in bright daylight, providing an easy-to-use interface for parking payment. With a resolution of 1280x1024 and 250cd/m² brightness, the screen is durable and ensures smooth interaction. The touch screen supports 50 million touches with high precision, offering a reliable user experience in all lighting conditions.
This Parking Payment Kiosk is designed for high-traffic environments, such as shopping malls, airports, or office parking lots, where it can handle large numbers of users efficiently. The kiosk’s multi-payment options (cash, card, NFC, and QR code) reduce waiting times, improve customer satisfaction, and reduce the need for on-site staff, making it a cost-effective solution for 24/7 parking operations.
Installation is straightforward thanks to its modular design and easy-to-follow guidelines. The kiosk is pre-assembled and comes with detailed installation instructions. The required setup components include the industrial PC system, cash acceptor, credit card reader, and thermal receipt printer. The kiosk is ready for integration into existing parking systems, and the durable steel frame ensures it can be placed both indoors and outdoors.
Yes, this parking payment kiosk is highly customizable. Businesses can add logos to the unit and modify the user interface to reflect their brand. Additionally, it can be tailored with extra peripherals, such as RFID scanners, to support more payment options. The screen size can also be adjusted from 8 inches to 65 inches, depending on the user’s space and visual requirements.
We offer comprehensive after-sales support for all customers, including:
Installation assistance and user training to ensure smooth operation.
Technical support via phone or email.
Regular maintenance to keep the system running efficiently.
Warranty: Typically 12 months, with extended options available upon request.
Spare parts and software updates are available for long-term kiosk functionality.
