Boarding Pass Kiosk

What is A Boarding Pass Kiosk

Boarding Pass Kiosk is a self-service machine designed for airports, enabling passengers to check in, print boarding passes, verify identification, and manage flight details without requiring staff assistance. This machine offers convenience and reduces queues, allowing travelers to complete their check-in process quickly and independently.

At LKS Kiosk, our boarding Pass Kiosk combines cutting-edge technology with user-friendly design. It includes a 17-inch touchscreen, passport OCR scanner, A4 laser printer, and fingerprint reader, ensuring quick, efficient, and secure check-ins. With a high-resolution display, 24/7 operational capability, and modular components for flexible customization, LKS’ kiosks deliver reliability and high performance, enhancing airport efficiency and passenger satisfaction.

HomeHot KiosksAirport KioskBoarding Pass Kiosk

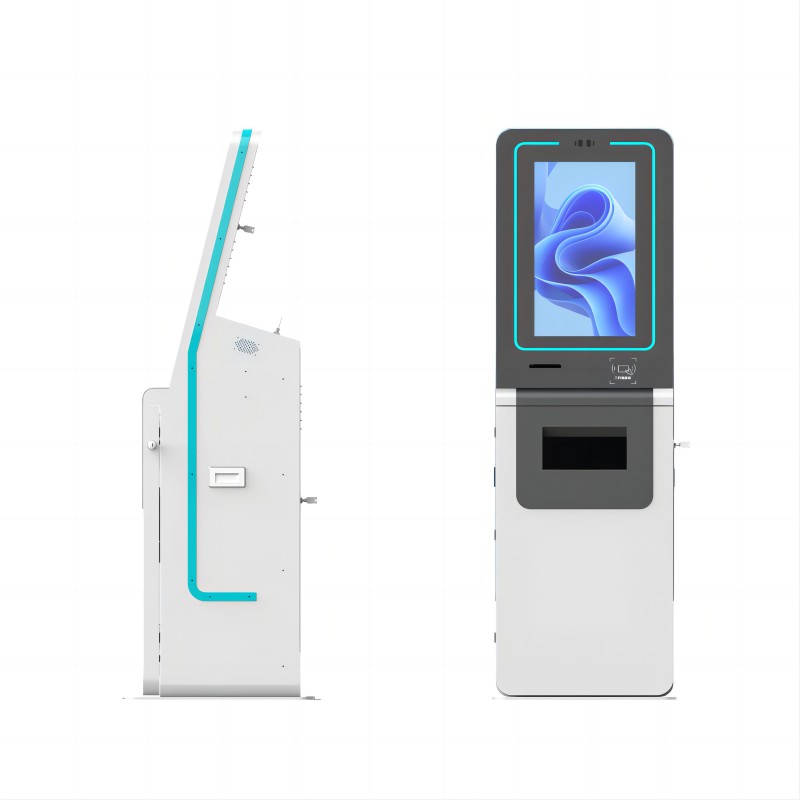

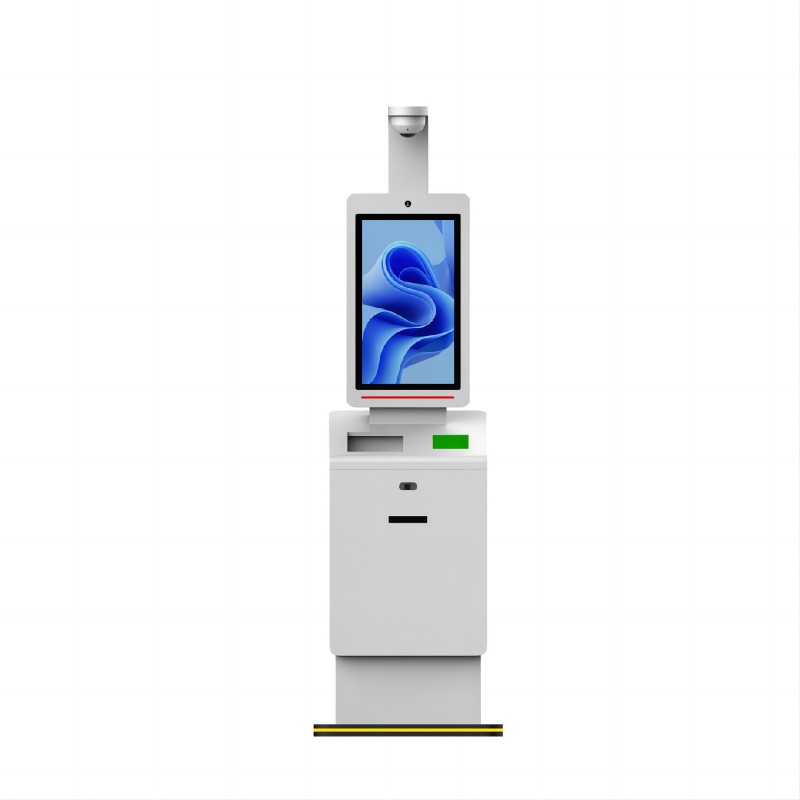

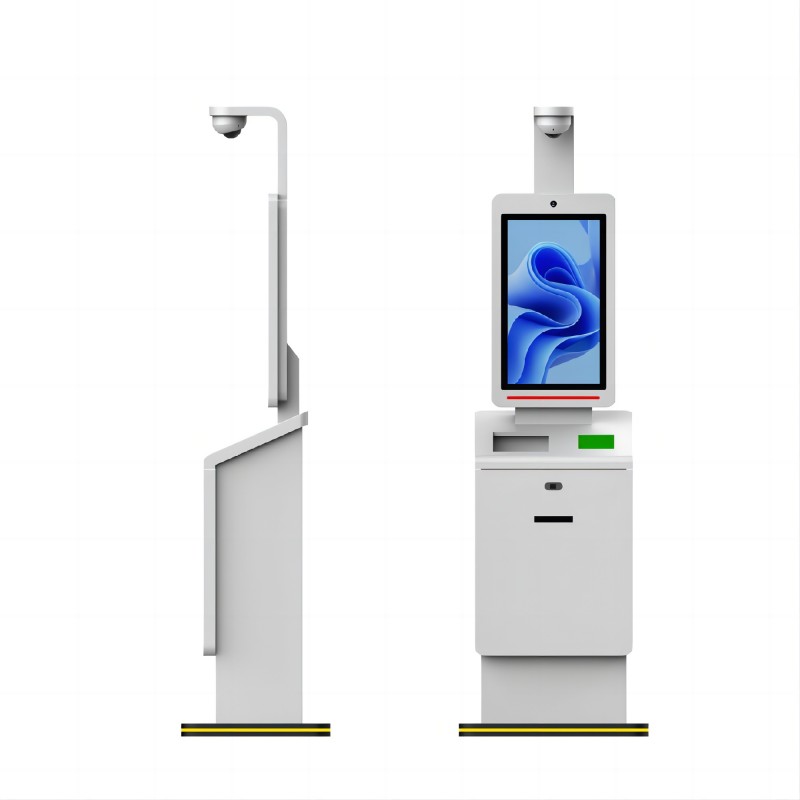

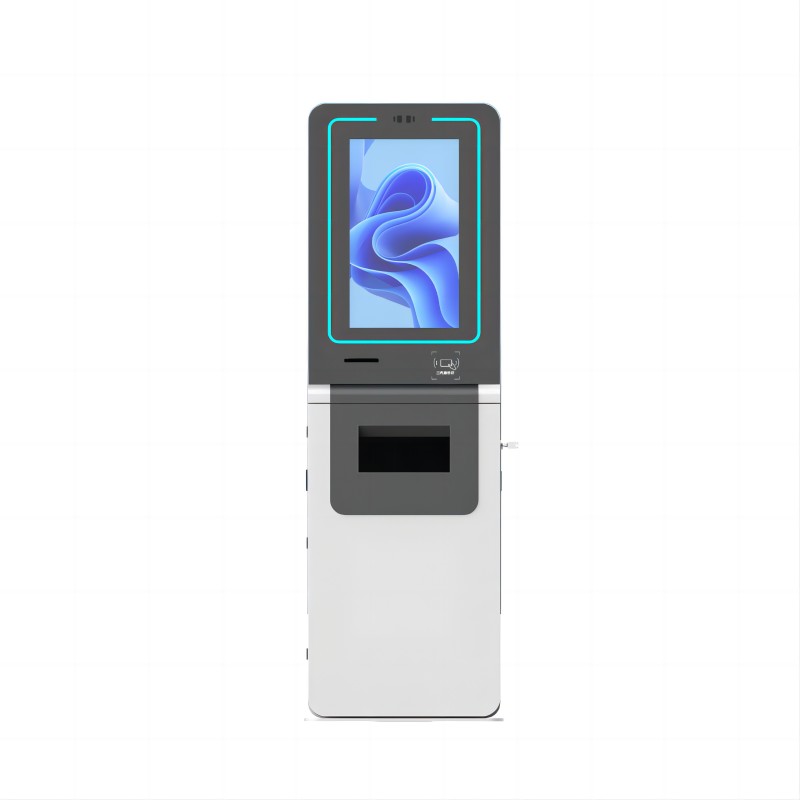

Boarding Pass Kiosk for Sale at LKS Kiosk with Various Design!

Page 1 of 0

Specifications of Boarding Pass Kiosk by LKS Kiosk

ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size21.5 inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size21.5 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Fingerprint readerInterfaceRS232,USB
Resolution500 dpi
Reading area14.6mm(Standard width)；18.1mm(Standard Length)
Grayscale8 bits
Digital signature padSize of the induction zone4*3 inch
Digital board resolution2000 LPI
Digital pen induction height15 mm maximum
Reading rate100 pps
Contactless IC/ NFC / RF card readerCard typeISO14443 TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
StatusLED indicator to show the power or communication status
InterfaceSupport  ISO14443
ID ScannerPixel500 million,resolution 2592X1944
Image outputJPG,BMP,TIF,PDF,TGA,PCX,PNG,RAS  type;color,gray ,monochrome;
SensorCMOS
OCRExtract to word file
Passport scannerTypeFlatbed color image sensor
Image sensorCMOS CIS ( Contact image sensor)
Paper thickness>0.1 mm
Resolution 600 dpi
Scanning Area5*3 inch
InterfaceRS232 ,USB
A4 printerInterfaceHigh speed USB / RS 232
Resolution4800*2400 maximum
Printing speed20 pages /second
Capacity of paper bos2100 A4 sheets maximum
A4 scannerResolution600 dpi
Scanning speed7.5 s/ A4 page
Scanning modeColor,Grayscale,Monochrome,Automatic Mode Detection
Scanning typeSingle sheet,simplex,color scanning with CDF
InterfaceHigh speed USB
SpeakerDual channel amplified speakers for Stereo , 8Ω 5W.
Webcam500 million pixels,USB driver
UPSInput voltage145-290va
Output voltage200-255va
Max time for supplying a single PC3~20minutes (for single PC)
Digital Power SupplyAC input voltage range100~240VAC
Frequency50Hz to 60Hz
AC input voltage range100~240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam and wooden case

Boarding Pass Kiosk Solutions by LKS

The Boarding Pass Kiosk Solutions by LKS offer a comprehensive self-service check-in experience for airports, revolutionizing passenger flow management. Our solution includes both hardware and software components, ensuring a seamless check-in process. Hardware features include a 17-inch touchscreen, passport OCR scanner, A4 laser printer, fingerprint reader, ID scanner, digital signature pad, and dual speakers. These components ensure secure, fast, and reliable check-ins while reducing staff dependency.

LKS provides multiple design options and size selections, ranging from compact units for smaller spaces to larger kiosks with additional functionalities. Customizations include options for color, branding, and logos, ensuring alignment with airport aesthetics and branding.

Technologically, our kiosks support Windows and Linux operating systems and incorporate 24/7 operational design, ensuring durability and minimal downtime. Modular architecture enables easy updates and maintenance, enhancing cost-efficiency. Additionally, the UPS ensures continuous operation, even during power interruptions, while advanced security features like OCR, fingerprint readers, and card scanners provide a high level of data protection.

LKS’ cutting-edge design and flexible configurations offer airports a future-proof solution tailored to meet their specific needs, providing both operational efficiency and an enhanced passenger experience.

Boarding Pass Kiosk Solutions by LKS

Key Features and Functions of the Boarding Pass Kiosk by LKS

  1. Self-Service Check-In: Allows passengers to check in, print boarding passes, scan passports, and perform other check-in-related tasks independently.

  2. Comprehensive Identification Scanning: Features OCR passport scanners, ID readers, and fingerprint scanners for secure and efficient identification verification.

  3. Ticketing and Printing: Equipped with A4 laser printers to print boarding passes and receipts and A4 scanners for document processing.

  4. Touchscreen Interface: A 17-inch IR touch screen (with optional sizes) for user-friendly interactions.

  5. Security Features: Digital signature pads, webcams, and dual speakers for verification and communication, ensuring secure and interactive user experience.

  6. Uninterruptible Power Supply (UPS): Ensures the kiosk operates continuously even during power fluctuations or outages, providing reliability for 24/7 operations.

  7. Modular Design: Independent modular components that are easy to maintain and upgrade, ensuring long-term usability.

Key Features and Functions of the Boarding Pass Kiosk by LKS

What are Advantages of Boarding Pass Kiosk

  1. Enhanced Efficiency: Reduces wait times and dependency on staff by enabling passengers to complete check-in autonomously.

  2. Cost-Efficient: Lessens the need for staffing while offering a more scalable solution.

  3. Security and Accuracy: Advanced identification scanners, including OCR and biometric features, ensure accurate passenger identification and minimize errors.

  4. Customizable Design: Flexible options for customization, including the color, branding, and logo to match airport aesthetics.

  5. Flexible Size Options: Available in multiple sizes ranging from compact versions for space optimization to larger models with extended functionalities.

  6. 24/7 Operation: Designed to operate continuously, ensuring consistent service availability and passenger flow.

What are Advantages of Boarding Pass Kiosk

Different Scenarios, Styles, and Core Components Configuration of Boarding Pass Kiosk by LKS

  • Compact Models: Ideal for airports with limited space, focusing on essential functionalities like passport scanning, ticket printing, and basic ID reading.

  • Large-Scale Models: Suitable for high-traffic areas, offering additional features like fingerprint recognition, larger touchscreens, and multiple scanners for a more integrated and smooth passenger experience.

Core Components:

  1. Industrial PC: Powerful CPU options like Intel Dual Core, ensuring fast and reliable processing.

  2. Fingerprint Reader & ID Scanner: Advanced features for verifying identity and ensuring security.

  3. High-Resolution Touchscreen: Provides responsive and interactive user interfaces.

  4. Laser Printer & Scanner: Efficient and high-quality printing and scanning capabilities.

  5. Webcam & Digital Signature Pad: Ensures real-time interactions and secure electronic signatures.

  6. UPS System: Guarantees power continuity for uninterrupted kiosk operation.

By combining cutting-edge hardware with intelligent software, LKS offers adaptable, efficient, and secure Boarding Pass Kiosk Solutions that meet diverse needs across various airport environments.

Different Scenarios, Styles, and Core Components Configuration of Boarding Pass Kiosk by LKS

Boarding Pass Kiosk by LKS - Customization Options and Purchase Strategy

Customization Options:

Screen Size and Type:

  1. Small Screen (8" - 17"): Ideal for compact spaces, providing essential check-in functionalities like boarding pass printing and basic identification scanning.

  2. Medium Screen (17" - 21"): Best for medium-sized airports or terminals where passengers need to perform multiple tasks efficiently (e.g., ID scanning, boarding pass printing).

  3. Large Screen (21" - 65"): Suited for high-traffic areas such as major international airports, with larger touch screens for a more comprehensive passenger experience, including more complex interactions.

Hardware Configurations:

  1. Dual-Core or Intel Core i3/i5/i7 CPUs: Depending on processing speed requirements, passengers can choose a dual-core CPU for general check-in or Intel i3/i5/i7 for high-demand, high-traffic locations.

  2. Fingerprint Readers & ID Scanners: Available for enhanced security and passenger identification, critical in large airports or those dealing with high-security requirements.

  3. OCR Passport Scanners: Customized for airports that require smooth and quick passport verification.

  4. Laser Printers and A4 Scanners: Options for airports focusing on printing boarding passes, receipts, or additional documents, with customization based on printing speed and capacity.

Design Customization:

  • Color & Branding: Customizable cabinet colors and branding, allowing airports to match kiosks with their visual identity.

  • Cabinet Size and Shape: Options for free-standing units or wall-mounted designs, enabling flexible installation to fit space constraints and design preferences.

Additional Accessories:

  1. Palm Vein Scanners: For advanced biometric verification in high-security environments.

  2. WIFI/3G/4G Modules: Connectivity options for remote support and real-time communication.

  3. Receipt and Bank Card Readers: Useful in airports that offer payment services for additional passenger convenience.

  4. Cash or Coin Validators: For locations with cash payment options.

Software and Integration:

  1. Custom Software Solutions: Tailored software to integrate seamlessly with the airport’s existing check-in and boarding systems.

  2. Multilingual Support: Offering support for multiple languages for international passengers.

  3. Real-Time Support Features: Options for remote monitoring and system updates to ensure kiosk efficiency.

Purchase Strategy and Application Scenarios:

Low-Traffic Airports/Small Terminals:

  • Customization Focus: Opt for smaller-sized kiosks with essential functionalities like ticket printing and basic passport scanning. Compact models reduce space requirements and are cost-effective.

  • Recommended Options: 17" touch screens, dual-core CPU, standard ID scanners, and basic printers.

Medium-Sized Airports:

  • Customization Focus: A blend of medium-sized screens and additional features such as fingerprint scanning and OCR passport scanners for more secure, faster check-ins.

  • Recommended Options: 17"-21" touchscreens, Intel i3/i5 processors, integrated fingerprint reader and OCR scanners, A4 laser printers.

Large or High-Traffic International Airports:

  • Customization Focus: Larger, robust systems that can handle a high volume of passengers with advanced biometric authentication, passport OCR scanning, and optional multilingual software.

  • Recommended Options: 21" and larger touchscreens, Intel i5/i7 CPUs, fingerprint readers, OCR passport scanners, large-scale A4 printers, and high-resolution cameras for seamless passenger experience.

Airports with Payment Services:

  • Customization Focus: Boarding Pass Kiosks equipped with coin validators, cash dispensers, or receipt printers, suited for terminals that integrate payment features.

  • Recommended Options: Cash or coin validator modules, receipt printer, bank card reader, and network connectivity for payment systems.

Key Strategy for Selection:

  • Traffic Volume: Choose hardware configurations that align with airport traffic—higher traffic necessitates more robust systems with additional verification features.

  • Space Availability: Select kiosks based on available space—compact models for tight spaces and larger models for expansive areas.

  • Security Requirements: High-security airports should prioritize biometric solutions and secure ID verification features.

  • Budget Considerations: Balance customization options to meet the airport’s needs while staying within budget, ensuring long-term operational efficiency.

In Conclusion: The Boarding Pass Kiosk by LKS offers versatile customization options to meet the specific needs of different airport sizes, from small terminals to large international hubs. By providing flexible design, hardware configurations, and advanced software integration, LKS ensures that airports can deliver optimal passenger experiences while maintaining security and operational efficiency.
