Hospital Kiosk

What is a hospital kiosk

Hospital kiosk is a self-service machine used in healthcare settings, designed to streamline administrative and operational tasks like patient check-ins, registration, payments, and information access. These kiosks enhance patient convenience and reduce wait times by automating processes typically managed by staff.

At LKS, our hospital kiosks offer a range of customizable features. These kiosks come equipped with 17 to 32-inch touchscreens, using IR or capacitive touch technology for accurate and durable interaction. The kiosks are designed with high-quality, anti-vandal steel frames, ensuring durability in high-traffic areas. With a robust hardware configuration including Intel dual-core processors, up to 8GB RAM, and 500GB HDD, the kiosks ensure smooth operation. Additionally, they support various payment methods, including bank card readers, encrypted pinpads, and thermal receipt printers. These kiosks are available in desktop, wall-mounted, and freestanding options and are customizable in terms of color and branding. LKS hospital kiosks provide a flexible, efficient, and secure self-service solution for healthcare facilities, ensuring streamlined patient experiences and enhanced operational efficiency.


Video overview of Hospital Kiosk

Watch the video below to explore the key features and benefits of our LKS's hospital kiosk. Learn how these self-service solutions streamline patient registration, payments, and more.

Hospital Kiosk for Sale at LKS in Different Types!

Page 1 of 1

Detailed specifications and components for hospital kiosk by LKS

Model NumberLKS8337
Place of OriginChina
BrandLKS or Custom
CertificationCE, FCC
Touch Screen Size17 inches, 19 inches, 21 inches, 32 inches (Custom sizes available from 8 inches to 65 inches)
Display TypeLCD, TFT, AUO or other (Customizable)
Material1.5mm to 2.5mm Cold-roll Sheet or Others
Cabinet Material FeatureAnti-dust, Anti-vandal
Supported OSWindows 7, Windows 8, Linux
Color OptionsCustomizable
Power Supply110-120V, 220V-240V (Optional)
Kiosk TypeCheck-In Kiosk, Touch Screen Information Kiosk, Touchscreen Kiosk
Warranty1 year
Interface6 RS-232 Ports, 1 LTP, 6 USB Ports, 1 10/100M Net Port, Integrated Net Card, Sound Card
PC SystemSeavo/Gigabyte/Advantech AIMB 562, Dual Core E5700/G2020, 2.8GHz, Intel i3/i5/i7
RAM2GB / 4GB / 8GB
HDD500GB
LCD Monitor FeaturesBrightness: 250cd/m², Horizontal angle: 100°, Vertical angle: 80°, Max resolution: 1280×1024
Touch Screen FeaturesHigh Transparency, High Precision, Durable, Orientation Precision < 2mm, 50,000,000 touches life
Bank/Credit Card ReaderRS232 Interface, Supports Magcard, IC Card, RF Card, Mifare S50, S70, UL Card
Encrypted Pinpad2,000,000 cycles, Key Force: 2~3N, Protection level: IP65
Cashcode Bill AcceptorValidation Rate: 96% or higher, 1000-note max capacity, Four-way Banknote Insertion
Coin AcceptorAccepts 32 coin types, Detection ability for counterfeit coins
Epson Thermal PrinterPrinting speed: 150mm/s, Paper width: 80mm, Data buffer: 4KB, RS232, USB interface
UPSInput voltage: 145-290VA, Output voltage: 200-255VA, 3~20 minutes supply per unit
AccessoriesLAN port, USB ports, speakers, fans, cables, screws
Additional FeaturesOptional Cash Dispenser, Coin Dispenser, Advertising Screen, Barcode Scanner, RFID Card Reader
Kiosk CabinetDurable steel frame, Slim design, Moisture-proof, Antirust, Anti-acid, Anti-dust, Static free
PackingSecurity packing with bubble foam and wooden case

Hospital Kiosk Solutions by LKS

LKS offers comprehensive and customized hospital kiosk solutions designed to meet the diverse needs of healthcare facilities worldwide. As a professional hospital kiosk manufacturer, we specialize in providing a wide range of OEM/ODM services, ensuring that our solutions are tailored to the specific requirements of each client. Our kiosks come in various styles and sizes, including tabletop, freestanding, and wall-mounted configurations, with touch screen sizes ranging from 17 inches to 65 inches, adaptable to different space requirements.

Key features of our hospital kiosks include patient registration, check-in, and payment processing functions, equipped with advanced hardware such as encrypted pinpads, bank card readers, and thermal printers. The kiosks are built with durable materials, offering anti-vandal, anti-dust, and anti-static protection. With modular design and easy maintenance, these kiosks are designed for 24/7 operation, providing healthcare professionals and patients with a seamless self-service experience.

Our hospital kiosks are compatible with Windows and Linux operating systems, and come with high-resolution touch screens, customizable user interfaces, and integration options for various healthcare systems. With our years of expertise, LKS delivers cutting-edge technology, providing hospitals with solutions that are efficient, reliable, and secure, backed by our dedicated after-sales service and ongoing support.

Hospital Kiosk Solutions by LKS

Key Features and Functions of Hospital Kiosk by LKS

  1. Patient Registration & Check-in: Streamlines the patient intake process by automating check-in and data entry, reducing wait times.

  2. Payment Processing: Handles transactions securely, with options for cash, card payments, and insurance verification.

  3. Queue Management: Integrates with hospital systems to help patients check in, track their appointments, and manage queues.

  4. Healthcare System Integration: Seamless integration with hospital management systems (HMS), allowing real-time data synchronization.

  5. User-friendly Touch Screen Interface: High-resolution, intuitive touchscreens for easy navigation, adaptable for patients with varying needs.

Key Features and Functions of Hospital Kiosk by LKS

Types and Sizes of Hospital Kiosk

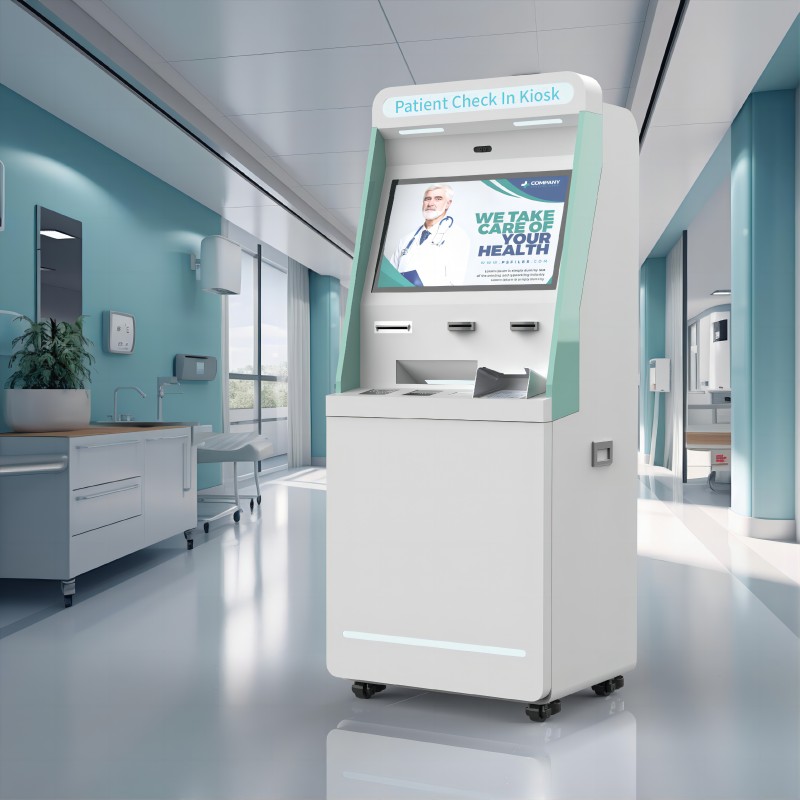

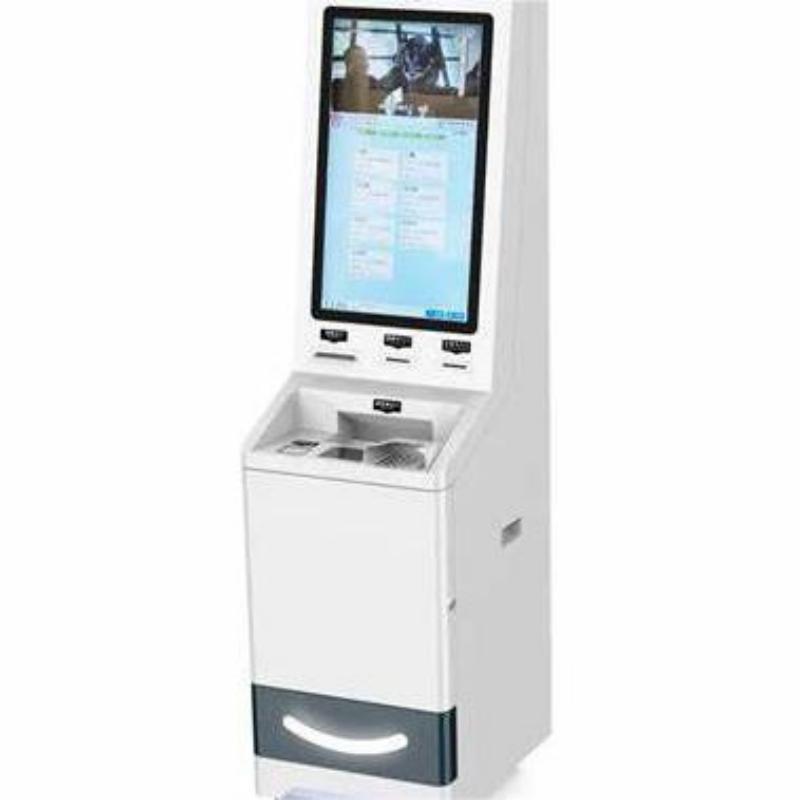

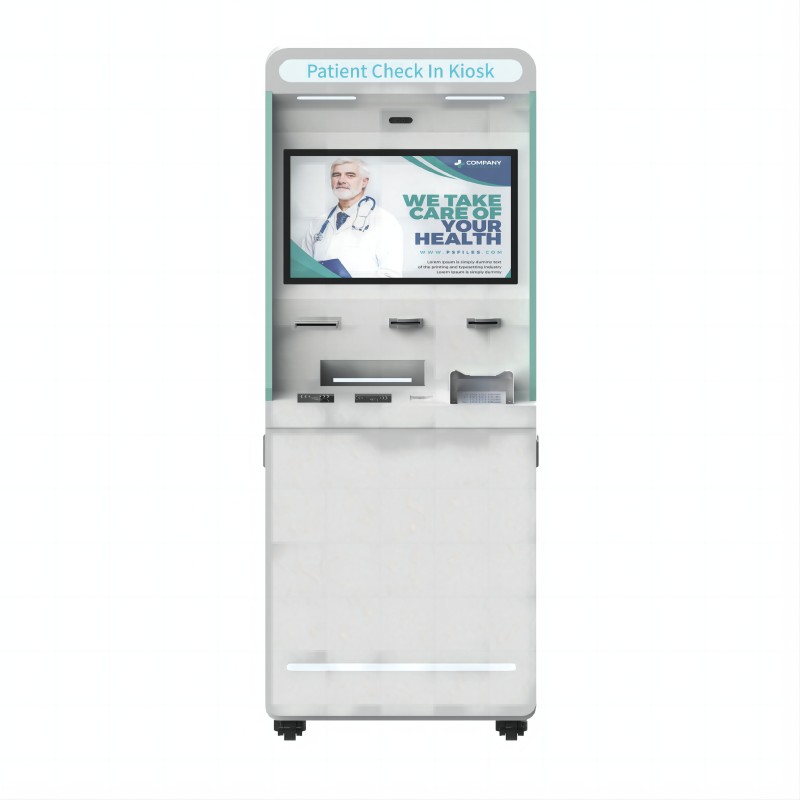

Freestanding Hospital Kiosk

Size: 17-32 inches (touch screen)

Applications: Ideal for high-traffic areas like hospital lobbies, waiting rooms, and outpatient centers.

Key Features: Touchscreen, patient registration, check-in, payment processing, thermal printer, RFID card reader, encrypted pinpad, and coin/cash acceptor.

Customization Options: Customizable user interface, branding, and color scheme.

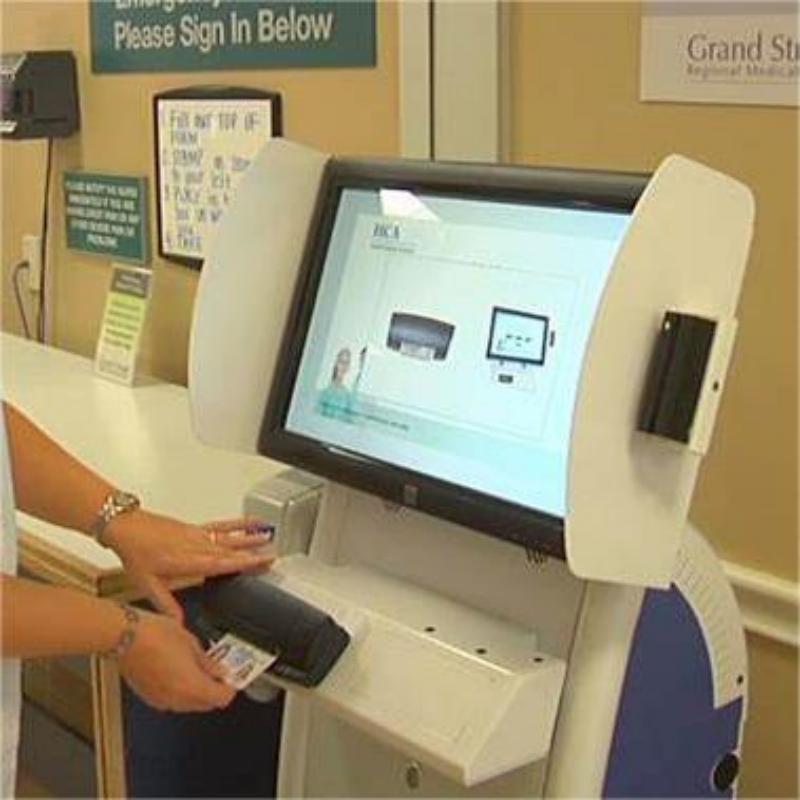

Tabletop Hospital Kiosk

Size: 10-19 inches (touch screen)

Applications: Perfect for smaller areas, such as hospital reception desks and patient rooms.

Key Features: Compact design, touch screen for patient registration, barcode scanning, payment terminal.

Customization Options: Screen size, display orientation (portrait or landscape), and integration with hospital information systems.

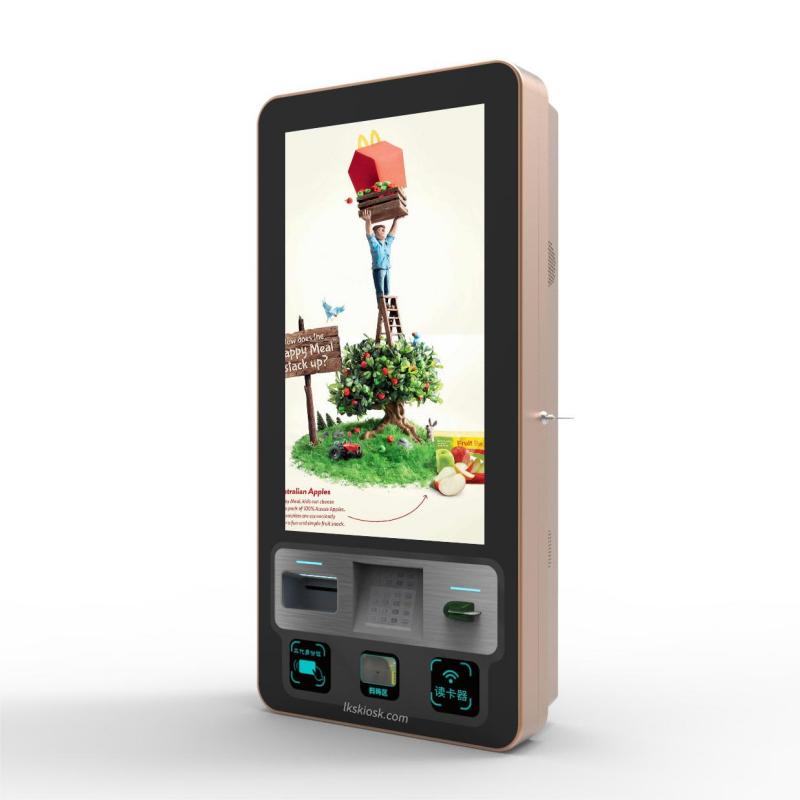

Wall-mounted Hospital Kiosks

Size: 17-32 inches (touch screen)

Applications: Space-saving option for corridors, hospital hallways, and elevators where floor space is limited.

Key Features: Self-service check-in, patient form submission, payment collection, and digital signage.

Customization Options: Adjustable height, custom skins, and branding to blend with hospital décor.

Types and Sizes of Hospital Kiosk

Applications of Hospital Kiosk

  • Hospitals: For patient check-ins, registration, payment, and information display in lobbies, waiting areas, and reception desks.

  • Clinics: Streamlining patient registration, insurance verification, and appointment scheduling in smaller healthcare facilities.

  • Outpatient Care Centers: Self-service kiosks for managing patient flow, including check-ins, billing, and document printing.

  • Emergency Rooms: Quick patient intake and check-in to improve emergency response times and minimize human error.

Applications of Hospital Kiosk

Customization Options of Hospital Kiosk by LKS

  1. Branding and Aesthetics: Fully customizable exterior to match the hospital's branding and interior design, including logos, color schemes, and finishes.

  2. Screen Size and Orientation: Flexibility to choose screen sizes from 17 inches to 65 inches and display orientations (portrait or landscape).

  3. Software Integration: Tailored software solutions, compatible with various hospital IT systems for smooth data exchange and workflow automation.

  4. Multi-language Support: Multi-language interfaces for international patient support.

  5. Security Features: Encrypted card readers, biometric authentication, and anti-tamper hardware ensure patient data is protected.

Customization Options of Hospital Kiosk by LKS

Cost and ROI of hospital kiosk

Price Range of Hospital Kiosks

The cost of LKS hospital kiosks varies based on functionality, design, and customization. Basic models for patient check-in, information display, or self-payment typically start at $2,500 to $5,000. Advanced configurations with integrated biometrics, customizable branding, and multi-functional features can range from $5,000 to $10,000 or more. Additional expenses like software licensing, installation, and maintenance may apply, depending on specific requirements.

Cost and ROI of Hospital Kiosks

While the initial investment can vary, hospital kiosks offer significant ROI by streamlining administrative tasks, reducing wait times, and enhancing patient satisfaction. Over time, kiosks reduce staff workload and increase efficiency, leading to long-term cost savings. By automating patient registration, payment, and information services, hospitals can significantly reduce operational overhead. This makes the upfront cost worthwhile, offering substantial improvements in both patient experience and hospital operational performance.

Cost and ROI of hospital kiosk

Advantages of Hospital Kiosk by LKS

  1. Enhanced Efficiency: LKS's hospital kiosks streamline administrative processes like patient check-in, registration, payment processing, and appointment scheduling, significantly reducing wait times and operational bottlenecks.

  2. Improved Patient Experience: With intuitive touch screens, multiple language options, and user-friendly interfaces, LKS's hospital kiosks provide a seamless, convenient self-service experience for patients, helping reduce stress and confusion.

  3. Cost-effective Solutions: By automating key tasks, LKS kiosks help hospitals lower administrative costs, reduce staffing needs, and improve workflow efficiency, leading to long-term cost savings.

  4. Security and Compliance: Our kiosks are designed with high-end security features, including encrypted card readers, biometric authentication, and data encryption, ensuring patient data is securely handled in compliance with industry standards like HIPAA.

  5. Customizable Design: LKS offers extensive customization options for kiosk size, design, color, branding, software, and functionality to align with specific hospital requirements and branding guidelines.

  6. Robust and Durable: Built with high-quality materials, LKS kiosks are resistant to vandalism, dust, and moisture, making them perfect for high-traffic healthcare environments. They are designed to operate 24/7, ensuring reliability in demanding settings.

  7. Flexible Integration: LKS kiosks seamlessly integrate with hospital information systems (HIS), allowing for real-time updates and data synchronization across hospital networks. This makes it easier to track patient flow, appointments, and billing.

Advantages of Hospital Kiosk by LKS

Market Analysis and Future Strategy for Hospital Kiosks by LKS Kiosk

The global hospital kiosk market is experiencing rapid growth, projected to reach USD 4.9 billion by 2027, driven by the demand for efficient patient management systems and digital solutions in healthcare. At LKS Kiosk, we are at the forefront of this revolution, offering advanced, customizable kiosk solutions such as Hospital Kiosk check in, Hospital Registration Kiosk, and Hospital Patient Kiosk, all designed to meet the diverse needs of healthcare providers.

Our kiosks are equipped with cutting-edge features, including 19-inch touchscreens, passport scanners, QR code scanning, and POS integration, ensuring smooth and efficient patient interactions. The rise of digital healthcare services, coupled with the increasing focus on patient experience and operational efficiency, positions hospital kiosks as an essential part of future healthcare systems.

LKS Kiosk’s strategic vision includes investing heavily in AI-driven solutions for predictive maintenance, real-time data analytics for patient management, and expanding our customization capabilities to fit any hospital environment. As a leading kiosk manufacturer with over 15 years of experience, we are committed to advancing the industry with high-quality, durable products designed for ease of use, ensuring maximum ROI for our partners.

Join us in shaping the future of healthcare with LKS Kiosk. Together, we can redefine patient experience and operational efficiency through innovative hospital kiosk solutions.

How to Choose the Right Hospital Kiosk

  1. Define the Purpose: Determine whether you need kiosks for patient check-in, payment processing, appointment scheduling, or patient information. Identify the specific tasks you want to automate.

  2. Consider Size and Space: Choose the appropriate kiosk size based on available space in the hospital or clinic. Options range from wall-mounted kiosks to freestanding and tabletop models. Select a design that fits well within your facility's layout and traffic flow.

  3. User-Friendliness: Ensure the touchscreen interface is easy to use for a wide range of patients, including the elderly and those with limited tech skills. Consider kiosks with multi-language support and high-contrast displays.

  4. Integration with Hospital Systems: Ensure that the kiosk can seamlessly integrate with your hospital management system (HMS) and other relevant IT infrastructure to facilitate data synchronization and workflow automation.

  5. Security Features: Choose kiosks equipped with encrypted card readers, secure payment options, and other protective measures to ensure patient data is safely handled, particularly in compliance with healthcare regulations.

  6. Customization Needs: If branding or unique functionalities are important, look for kiosks that offer custom design options, such as logo placement, color schemes, and tailored software interfaces.

  7. Maintenance and Support: Consider the ease of maintenance, availability of after-sale support, and warranty options. A reliable manufacturer with strong support can ensure the kiosk operates efficiently over time.

  8. Durability and Reliability: Choose a kiosk designed for high-traffic environments with rugged, durable materials that can withstand frequent use, including anti-vandal and moisture-resistant features for long-lasting performance.

By carefully considering these factors, LKS can guide you to select the right hospital kiosk solution that maximizes efficiency, enhances patient satisfaction, and aligns with your hospital's goals and needs.
