Detailed Product Description
Introduction to QR Code self ordering kiosk
QR Code Self Ordering Kiosk with 19 inch touch screen is a self-service ordering machine designed for fast food restaurants and other quick-service environments. This 19 inch QR code ordering kiosk supports multiple languages and NFC payment, allowing customers to browse menus, place orders, scan QR codes, and make payments efficiently. Fast food restaurants can use this 19 inch self ordering kiosk enhances customer experience by reducing wait times, minimizing human errors, and increasing order accuracy, helping businesses streamline operations and boost revenue.
Features and Functions of QR Code Self-Ordering Kiosk
19” Touch Display: Responsive and user-friendly interface QR Code Scanner: Allows easy mobile app integration and contactless ordering Multiple Language Support: Suitable for diverse customer groups NFC Payment: Supports contactless card and mobile wallet payments Thermal Receipt Printer: Fast printing of order confirmations and receipts Customizable Menu Display: Real-time updates and promotional content Durable Cold Rolled Steel Structure: Anti-rust, anti-dust, stable Floor Stand Design: Easy to install and suitable for indoor environments Optional Components: Barcode scanner, fingerprint reader, camera, etc. Windows OS Support: Compatible with custom restaurant software
|
|
Detailed Informations of QR code self ordering kiosk
| Product Name | 19'' QR Code Self-Ordering Kiosk |
| Model Number | LKS8568A |
| Touch Screen | 19-inch IR touch screen / Capacitive optional |
| Advertising Screen | 21.5-inch LCD (optional) |
| Material | Cold Rolled Steel |
| Color Options | Blue / Customizable |
| Installation Type | Floor Stand Kiosk |
| Applications | Fast Food Restaurants, Cafés, Food Courts |
| Main Functions | QR Code Scan, Menu Browse, Self Ordering, NFC Payment, Receipt Printing |
| Payment Methods | NFC, QR Code, Card Reader (optional) |
| Operating System | Windows XP/7/10 (License optional) |
| Connectivity | USB, RS232, Wi-Fi Module |
| Printer | 80mm Thermal Printer with Autocutter |
| Certifications | CCC |
| Warranty | 1 Year |
| MOQ | 10 Units |
| Price | USD 1000 - 5000 per set |
| Packaging | Film Wrap + Foam + Wooden Box |
| Delivery Time | 4-6 Weeks After Payment |
| Payment Terms | T/T in Advance |
| Supply Ability | 1000-2000 Units per Month |
Main Components of 19 inch QR code self ordering kiosk
| Main Components | Main specifications |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2030, 3.0GHZ; Intel Dual Core I3/I5/I7 |
| RAM | 2GB /4 GB / 8GB |
| HDD | 500G |
| Interface | 6* RS-232 Ports;1* LTP;6 * USB Ports,8*GPIO;1*PCI |
| PC Power Supply | HUNTKEY/Great Wall |
| LCD monitor | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Brightness | 250cd/m2 |
| Angle | horizontal 100°above;Vertical 80°above |
| Contrast | 1000:1 |
| Backlight Tube Life | more than 40,000hours |
| Response Time | <5ms |
| Max. Resolution | 1280×1024 |
| Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Touch Accuracy | center: <1.5mm |
| edge: <3.2mm |
| Response Time | <16ms |
| Voltage | DC5V+/-5% |
| Interface | RS232,USB |
| Glass Thickness | 3mm |
| Resolution | 4096x4096 |
| Card Reader | Reading Distance | >4cm |
| Operating System | windows98,Me ,XP,2003 ,Unix and Linux |
| Card Contact Number | 200000 Secondary |
| Operating Temperature | -20℃ to 60℃ |
| Whether Contact | Non-contact |
| Interface | Serial ports,USB |
| Encrypted Pinpad | Key Lifespan | >2,000,000 times |
| Key Activation Force | 2~3N |
| Key Trip | >=0.45mm |
| Pin Input | 10 numerical keys and 6 function keys |
| Power Voltage | DC5V+/-10%,Max 200mA |
| Protection Level | Ip65 static and ip54 dynamic |
| Cash dispenser | Denomination | 2 denomination |
| Cassette Capacity | 214mm |
| Dispensing Speed | 4 note/sec |
| Reject Capacity | about 50 notes |
| Usable Note Size | width:100~162mm |
| height:62~78mm |
| Cash acceptor | Validation Rate | 96% or higher on first insertion |
| Bill Path Width | 62-77mm |
| Bill Path Length | 120-160mm |
| Barcoded Coupons | lengthwise two-way |
| Banknote Insertion | lengthwise Four-way |
| Escrow | One bill |
| Capacity | 1000 notes Max |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Coin Accepted Size | Coin diameter: 15-31.5mm ( optionally up to 32.5mm) |
| Coin thickness: 1.5-2.5mm ( optionally bis 3.3mm) |
| Receiving Rate | >99.6% |
| Accepting Speed | 2 Coins /Sec |
| Supply Voltage | 12V-24V DC |
| Coin Dispenser | Dispensing Speed | 12 note/sec |
| Storage Capacity | 1500 coin |
| Coin Diameter | 18~28.5mm |
| Coin Thickness | 1.65~3.2mm |
| Power Voltage | DC24V |
| Receipt printer | Autocutter | included |
| Technology | Thermal printing |
| Paper Width | 80mm |
| Printing Speed | 150mm/s |
| Paper Thickness | 0.06-0.15mm |
| Supply Voltage | DC24V |
| UPS | Input Voltage | 145-290va |
| Output Voltage | 200-255va |
| Transient Time | ≦10ms |
| Max Time For Supplying a Single PC | 3~20minutes (for single PC) |
| Digital Power Supply | AC Input Voltage Range | 100‐240VAC |
| Frequency | 50Hz to 60Hz |
| Output Over Current Protection | 110~130% |
| Frequency | 50Hz to 60Hz |
| Accessories | Wire-Lan Port, USB Ports, Speakers, Fans, Cables, Screws, Etc. |
| Operation System | Windows 7 or Windows XP Operation System For Test |
| KIOSK Cabinet | Durable Steel Frame, Slim And Smart Design; Easy to Install And Operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, Have Color And LOGO Upon Request. |
| Packing | Security Packing Method With Bubble Foam+Wooden Case |
Why 19 Inch – Benefits for Fast Food use this 19 inch self ordering kiosk
The 19-inch touch screen offers the perfect balance between visibility and compact design. It provides a large enough display to clearly show menu items, images, and ordering steps, while remaining space-efficient for fast food environments with limited counter or floor space. A 19-inch screen enhances user interaction, minimizes input errors, and is highly responsive, making it ideal for quick-service restaurants where customers need fast, intuitive ordering experiences.
Advantages of QR Code and NFC Payment for self ordering kiosk
QR code and NFC payment technologies provide fast, secure, and contactless transaction options. Customers can simply scan a QR code using their smartphones or tap an NFC-enabled card or device to pay. This not only reduces wait times and queuing but also lowers the need for physical contact, which is increasingly important for hygiene. Both methods support mobile wallet integration and are compatible with most payment systems, offering convenience and flexibility for customers.
How this QR Code self ordeirng kiosk Enhances Fast Food Efficiency
The 19-inch QR code self-ordering kiosk boosts efficiency by automating the ordering process. Customers can browse the menu, customize orders, and pay—all without needing staff assistance. This reduces labor demands, shortens queues, and increases order accuracy. With real-time order transmission to the kitchen, service speed is significantly improved. The result is a smoother, faster operation that enhances customer satisfaction and increases daily transaction volume.
Applications of this 19 inch QR Code Self Ordering Kiosk
Fast Food Restaurants: 19 inch self ordering kiosk used in Fast Food Restaurants allows customers to place and pay for meals quickly, reducing wait time and labor cost.
Hotel Lobbies: Self ordering kiosk used in Hotel Lobbies enables guests to order room service or local services efficiently, improving guest satisfaction.
Amusement Parks: Self ordering kiosk for Amusement Parks lets visitors order snacks or tickets instantly, reducing queues and improving visitor flow.
Hospitals & Clinics: For Hospitals and Clinics, this self ordering kiosk offers patients and visitors a convenient way to get meals or beverages without relying on staff.
Airport Food Courts: This 19 inch self ordering kiosk is perfect for Airport Food Courts, helps busy travelers place orders and pay via QR/NFC quickly, ensuring timely service.
Shopping Mall Food Zones: QR Code NFC payment self ordering kiosk used in Shopping Mall Food Zones, streamlines order processes in food courts, increasing turnover rate and order accuracy.
School & Campus Canteens: 19 inch self ordering kiosk for School and Campus Canteens, allows students to order meals fast, ideal for short lunch breaks and high-volume dining.

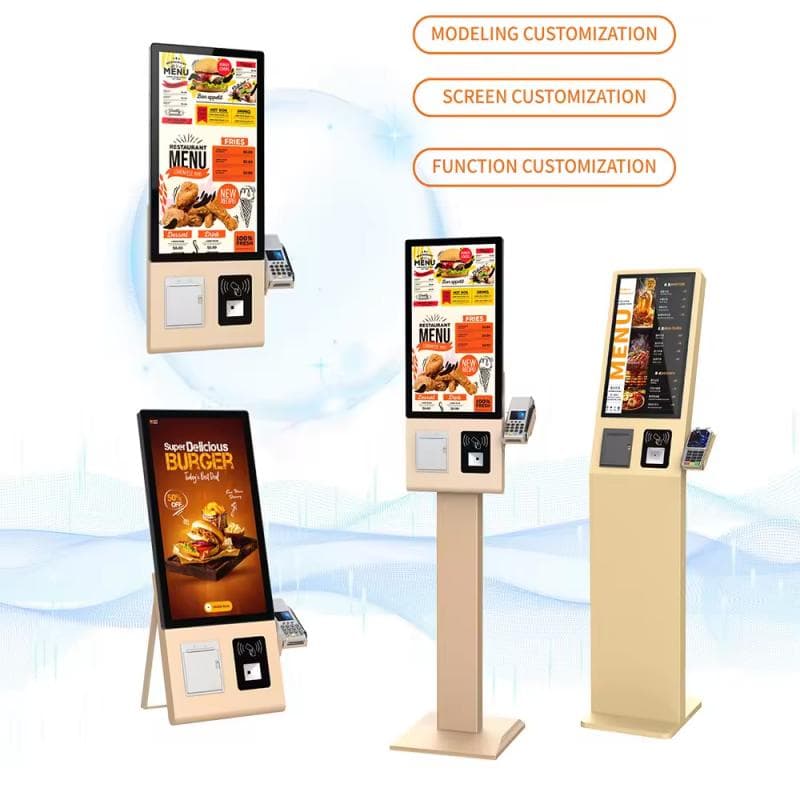

Customization options of 19 inch Self Ordering Kiosk
Touchscreen Size Options
Self ordering kiosk offers screen size customization (15”–27”) to suit counter or floor standing use.
Branding & UI Personalization
Self ordering kiosk supports custom logo, color themes, and animated UI to match brand identity.
Software Integration
Self ordering kiosk can be integrated with POS, kitchen displays, inventory, or loyalty systems.
Multi-Payment Compatibility
Self ordering kiosk supports QR code, NFC, card swipe, and cash payment modules.
Multilingual Support
Self ordering kiosk provides multilingual interfaces to serve international customers seamlessly.
Printer & Hardware Add-ons
Self ordering kiosk offers receipt printer, fingerprint scanner, and security lock as optional modules.
Mounting Options
Self ordering kiosk can be wall-mounted, desktop-placed, or floor-standing depending on site layout.
Outdoor Usage Option
Self ordering kiosk can be upgraded with waterproof and sunlight readable screen for semi-outdoor use.
Installation & Usage Guide for this self ordering kiosk
| 1. Unpacking | Remove foam and protective film. Check all components. |
| 2. Power Connection | Plug into AC outlet. Ensure stable voltage (100-240V). |
| 3. Network Setup | Connect via LAN or Wi-Fi. Configure IP address if needed. |
| 4. System Boot | Start kiosk, wait for OS and interface to load. |
| 5. Software Configuration | Load ordering/payment app. Set menu, language, price. |
| 6. Test Run | Simulate an order with QR & NFC payment. Confirm function. |
| 7. Staff Training | Train staff for simple troubleshooting and operation. |
Maintenance & Technical Support for 19 inch ordering kiosk by LKS
| Task | Frequency | Instructions |
|---|
| Screen Cleaning | Weekly | Use microfiber cloth & non-abrasive cleaner. |
| System Update | Monthly | Apply software/firmware updates from vendor. |
| Internal Check | Quarterly | Inspect cables, PC board, fans for dust or wear. |
| Component Test | Biannually | Test QR scanner, NFC module, printer, coin acceptor. |
| Tech Support | As needed | Contact supplier for remote or on-site assistance. |
| Warranty | 1 Year | Covers hardware defects (non-human damage). |
FAQS about 19 inch QR Code NFC payment ordering kiosk provide by LKS
What is a self ordering kiosk and how does this model help fast food businesses?
A self ordering kiosk lets customers browse, order, and pay without staff. This 19'' model reduces labor, speeds service, and boosts efficiency for fast food outlets.
Why choose the 19 inch screen size for self ordering kiosks?
The 19" touch screen is ideal for showing full menus while saving space. It enhances visibility and interaction, suitable for high-traffic quick-service restaurants.
What payment options are supported by this self ordering kiosk?
It supports QR code payment and NFC (like Apple Pay, Google Pay, IC cards), offering fast, contactless transactions, improving customer experience and hygiene.
How easy is it to install and maintain the self order kiosk?
This self order kiosk is plug-and-play with simple setup. Maintenance involves screen cleaning and regular system updates. Our team provides remote or on-site tech support.
Can this self ordering kiosk be customized?
Yes, we offer OEM/ODM options including logo, language, menu interface, and hardware modules like fingerprint reader, barcode scanner, and thermal printer.
What ROI can I expect from investing in this self ordering kiosk?
With faster service, reduced staffing needs, and higher order accuracy, the ROI is typically achieved within 6–12 months depending on location and usage volume.
