Detailed Product Description
Kiosk online payment made by LKS in different types and sizes, buy high quality kiosk online payment from us at factory price, as a leading kiosk online payment manufacturer, we providing various kiosk online payment from China. Following is the detailed informations of our kiosk online payment.
Definition of kiosk online payment
Kiosk online payment is a self-service machine equipped with internet connectivity and secure transaction systems that allows users to complete payments digitally without staff assistance. It typically features a touchscreen interface, QR code scanner, card reader, and supports mobile payments, credit/debit cards, and e-wallets. Customers use it to pay for tickets, bills, orders, or services. Commonly used in retail, transportation, healthcare, and food service, it enhances service speed, reduces labor costs, and improves user convenience.
Features and Functions of Kiosk Online Payment
Multiple Payment Methods: Supports various online payment options such as credit/debit cards, mobile wallets (Apple Pay, Google Pay), QR code payments (WeChat Pay, Alipay), and bank transfers.
Contactless Payment: Enables hygienic, touch-free transactions for improved safety. Real-Time Processing: Speeds up checkout with instant payment confirmation. Secure Transactions: Uses data encryption and PCI-DSS compliance for safe payment handling. User-Friendly Interface: Intuitive touchscreen design for easy self-service. Receipt Options: Provides printed or digital receipts for convenience. Remote Management: Allows for software updates and monitoring via the cloud.
|
|
Standard hardware of kiosk online payment by LKS
| Components | Details |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 |
| RAM | 2GB /4 GB / 8GB |
| HDD | 500G |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card |
| PC Power Supply | HUNTKEY/Great Wall |
| LCD monitor | Screen Size | optional from 8inch to 65inch |
| Brightness | 250cd/m2 |
| angle | horizontal 100°above;Vertical 80°above |
| Contrast | 1000:1 |
| Backlight tube life | more than 40,000hours |
| Max. resolution | 1280×1024 |
| Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times |
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card |
| Power Voltage | DC 24V±5% |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal |
| Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
| Key force | 2~3N |
| Key trip | >2.5mm |
| Protection level | ip65 |
| Cashcode Bill acceptor | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way |
| Escrow | One banknote |
| Capacity | 1000 notes Max |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins |
| Accepting Speed | 2 Coins/Sec |
| Supply Voltage | 10V-16V DC |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing |
| Paper width | 80mm |
| Printing speed | 150mm/s |
| Data buffer | 4KB |
| Interface | RS232 ,USB |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va |
| Max time for supplying a single PC | 3~20minutes (for single PC) |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz |
| AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. |
| Operation System | Windows 7 or Windows XP operation system without license |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. |
| Packing | Security Packing method with bubble foam and wooden case |
Software of Kiosk Online Payment by LKS
| Software Component | Function Description | Benefits |
| Payment Gateway Integration | Connects kiosk to online payment networks (e.g., Stripe, PayPal) | Enables secure and fast transactions |
| POS Management Software | Manages product/service selection, pricing, and checkout | Streamlines sales and payment workflow |
| User Interface (UI) | Interactive display for user input, navigation, and confirmation | Enhances user experience and accessibility |
| CMS (Content Management) | Manages ads, service content, promotions | Enables remote updates and customization |
| Security Protocols | SSL encryption, tokenization, and fraud detection | Ensures secure data and PCI-DSS compliance |
| Receipt & Notification System | Generates e-receipts or printed tickets, sends email/SMS | Provides record-keeping and customer trust |
| Multi-language Support | Offers multilingual UI and transaction processing | Improves accessibility in diverse regions |
| Integration API | Enables connection with third-party systems like CRM, ERP | Boosts backend data flow and analytics |
| Real-Time Monitoring | Tracks system health, payment logs, and transaction data | Enables remote diagnostics and management |

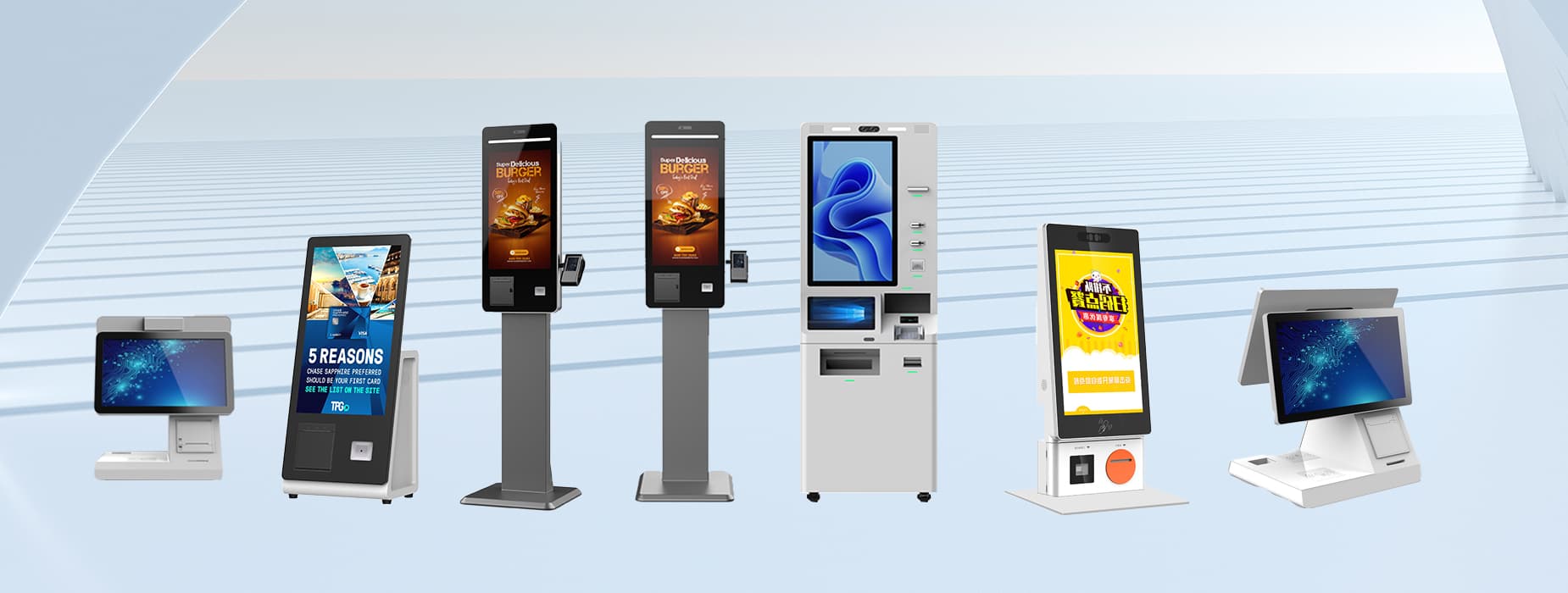

Types of Kiosk Online Payment & Applications
Applications: Fast food chains, retail stores, transit stations
Purpose: Allows customers to independently select services/products and complete online payments, improving efficiency and reducing queues.
Applications: Utility bills, mobile top-ups, property fee collection
Purpose: Enables users to check and pay bills digitally; commonly used in public service areas.
Applications: Cinemas, public transport, train stations, tourist attractions
Purpose: Integrates ticket purchase and digital payment; supports cards, QR codes, NFC.
Applications: Shopping malls, airports, office building parking lots
Purpose: License plate recognition + online payment for parking fees; supports contactless methods.
Healthcare Payment Kiosk
Applications: Hospitals, clinics, medical centers
Purpose: Facilitates registration, fee payment, and information access to enhance patient experience.
Applications: Convenience stores, supermarkets, unmanned retail outlets
Purpose: Enables barcode scanning, online payment, and self-checkout.

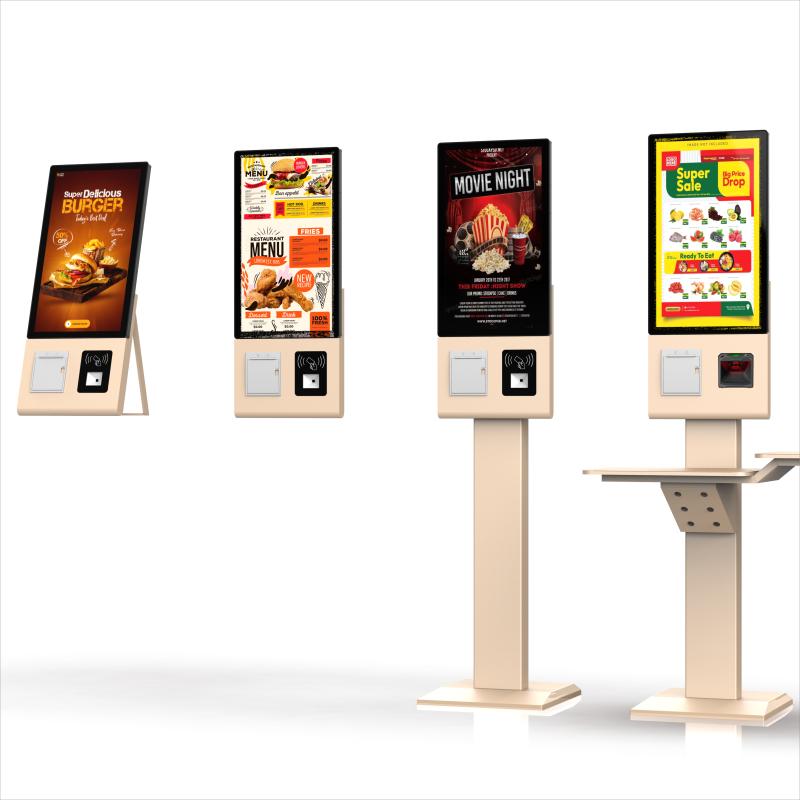

Sizes of Kiosk Online Payment & Usage Recommendations
Small Size (10–15 inch screen)
Best for: Limited spaces like convenience stores, clinics, and compact self-service stations
Advantages: Space-saving, low cost, ideal for basic payment tasks
Mounting: Wall-mounted or countertop
Medium Size (15.6–21.5 inch screen)
Best for: Medium-traffic environments such as supermarkets, hospitals, metro stations, and banks
Advantages: Clear interface, robust functionality, user-friendly interaction
Mounting: Freestanding or flush-mounted
Large Size (27–32+ inch screen)
Best for: High-traffic locations like airports, shopping malls, and government service centers
Advantages: Supports advertising, multi-user interaction, rich media content
Mounting: Floor-standing, dual-screen options available
Advantages of Online Payment for a Kiosk
|
Faster Transactions – Speeds up the payment process, enhancing service efficiency. Reduced Labor Costs – Minimizes the need for cashiers or service staff. Improved Customer Experience – Offers flexible payment options and shorter wait times. 24/7 Availability – Operates around the clock without staff. Enhanced Hygiene – Contactless payments are safer, especially post-pandemic. Minimized Errors – Reduces cash handling mistakes. Actionable Data – Tracks payment behavior for business insights and optimization.
|
Best-Use Scenarios and Problems Solved by Kiosk Online Payment
Kiosk online payment is especially useful in:
High-traffic environments – Reduces crowding in places like malls, hospitals, and theme parks.
Long queues – Speeds up service by distributing customer flow.
Labor-intensive operations – Cuts staffing costs while maintaining service quality.
Limited payment flexibility – Offers diverse digital payment options.
Health-sensitive areas – Ideal for minimizing physical contact in medical or food service settings.
Common Payment Methods in Kiosk Online Payment – Strengths & Limitations
1. Credit/Debit Card (Magstripe & EMV Chip)
Strengths: Universally accepted, secure (especially EMV), supports both swipe and chip reading.
Limitations: Requires physical interaction, susceptible to skimming or chip damage.
2. Mobile Wallets (Apple Pay, Google Pay, Samsung Pay)
Strengths: Contactless, fast, encrypted; increasingly popular among younger users.
Limitations: Adoption varies by age group and region; needs NFC-enabled device.
3. QR Code Payments (Alipay, WeChat Pay, PayPal, etc.)
Strengths: Great for mobile-first markets, cost-effective, widely used in Asia.
Limitations: Depends on user's smartphone and app; requires internet connection.
4. NFC (Near Field Communication)
Strengths: Seamless, tap-and-go experience; ideal for high-traffic environments.
Limitations: Requires NFC-enabled devices and kiosk hardware; less familiar to older users.
5. EMV Contactless (Tap-to-Pay Cards)
Strengths: Secure, fast, and growing in popularity worldwide.
Limitations: Hardware compatibility needed; limited adoption in some developing markets.
6. Bank Transfers / UPI / e-Wallets
Strengths: Low-cost, secure; widely used in India and parts of Asia.
Limitations: Processing speed can vary; user must manage bank credentials or app.
7. Cryptocurrency (Bitcoin, Ethereum, etc.)
Strengths: Borderless, decentralized, useful for privacy-conscious users.
Limitations: Volatile value, limited legal framework, still niche in kiosk usage.
Online Payment Kiosk vs Cash Payment Kiosk
Online payment kiosk and cash payment kiosk serve similar transactional functions but differ significantly in operation, efficiency, and long-term value. Online payment kiosk supports credit/debit cards, mobile wallets, QR codes, and NFC, enabling contactless, fast, and secure transactions. They reduce the risk of cash handling errors, theft, and manual reconciliation. These kiosks are widely used in retail, transportation, food service, and smart city environments. In contrast, cash payment kiosk allows customers to pay with physical money, ideal for cash-preferred regions but requiring more maintenance (cash collection, security, cleaning) and higher upfront hardware costs. While cash kiosks are still essential in cash-dependent sectors, online payment kiosks offer better scalability, hygiene, and integration with digital systems, making them a smarter investment for businesses aiming to future-proof operations.
Customization Options of Kiosk Online Payment
| Customization Category | Available Options | Notes |
| Screen Size | 10", 15.6", 21.5", 27", 32"+ | Touchscreen, capacitive or infrared |
| Payment Methods | Credit/debit card, QR code, NFC, EMV, mobile wallet, crypto | Choose based on region and customer preference |
| Printer Options | 80mm thermal, receipt only, ticket printer, no printer | Optional depending on use case |
| Scanner | 1D/2D barcode, passport/ID scanner | Required for ticketing, identification or coupons |
| Camera Module | Face recognition, surveillance, ID capture | Optional for security or identification purposes |
| Operating System | Android, Windows, Linux | Chosen based on software stack and application needs |
| Software Integration | ERP, CRM, POS, banking APIs | Based on business ecosystem and backend systems |
| Branding & UI Design | Custom logo, brand colors, layout | Enhances brand recognition and user experience |
| Connectivity | Ethernet, Wi-Fi, 4G/5G, Bluetooth | Important for location and remote access requirements |
| Mounting Type | Wall-mounted, freestanding, countertop | Space and accessibility dependent |
| Materials & Finish | Metal (powder-coated), stainless steel, tempered glass | Based on indoor/outdoor use, durability needs |
| Language Support | Multilingual interface and receipts | Important for global deployment |
Investment Analysis for Kiosk Online Payment
Investing in kiosk online payment systems offers strong potential for ROI due to automation, 24/7 service, and reduced staffing costs.
Opportunities: | Challenges: | Payback Period:Typically 12–24 months, depending on: Location foot traffic Type of business (retail, F&B, etc.) Service volume & operational efficiency
|
Installation & Operation Guide for kiosk online payment
| Site Selection | Choose a secure, high-traffic, indoor or sheltered area with power & network access |
| Power Supply | 110V/220V depending on region; ensure proper grounding |
| Internet Connection | Stable LAN/Wi-Fi or 4G connectivity for payment gateway |
| Initial Setup | Install software, configure payment methods, test transactions |
| User Operation | Touchscreen navigation, scan QR/pay card, confirm, receive receipt |
Technical & After-Sales Support for kiosk online payment by LKS
| Remote Assistance | 24/7 technical support via phone, email, and remote desktop |
| On-Site Service | On-demand local technician visits for hardware maintenance |
| Software Updates | Regular system upgrades for security and performance |
| Payment Gateway Support | Integration and testing assistance for all supported payment types |
| Warranty & Spare Parts | 1–3 years warranty; spare parts availability guaranteed |
FAQS about kiosk online payment
1. What payment methods are supported by a kiosk online payment system?
Most kiosks accept credit/debit cards, mobile wallets (Apple Pay, Google Pay), QR code scans, and NFC contactless options. Some models also support EMV chips and emerging methods like UPI or cryptocurrency depending on region and setup.
2. How do users operate a kiosk online payment machine?
Users interact via a touchscreen interface to choose products or services, confirm order details, and then complete payment using their preferred digital method. The interface is intuitive and designed for fast, self-guided completion in under a minute.
3. What is the average price of a kiosk online payment unit?
Entry-level units cost $2,000–$4,000 and include basic touchscreen and card readers. High-end models with dual screens, barcode/QR scanners, printers, and facial recognition can exceed $6,000 depending on customization and branding.
4. What is the ROI for investing in a kiosk online payment system?
Typical ROI is 6–12 months. Kiosks reduce labor costs, allow 24/7 operation, speed up transactions, and improve customer satisfaction. In high-traffic locations, faster turnover and upsell features accelerate return on investment.
5. How is a kiosk online payment system installed and configured?
LKS or other manufacturers pre-configure the software and hardware. Installation involves power and internet setup. Systems are plug-and-play compatible with existing POS platforms, and can be updated remotely for ongoing upgrades.
6. What maintenance or servicing does a kiosk online payment need?
Maintenance is low and includes cleaning touchscreens, checking payment devices, and running software updates. No cash handling means fewer mechanical parts to wear out, reducing service frequency compared to traditional cash kiosks.
