Detailed Product Description
2D Scanner Self Payment Kiosk, slef payment kiosk with High Durability Multi-Payment Methods Secure Data Processing made by LKS are high quality, we provide 2D Scanner Self Payment Kiosk with High Durability Multi-Payment Methods Secure Data Processing from China. Below is the detailed introduction to this self payment kiosk.
Description of This Self Payment Kiosk

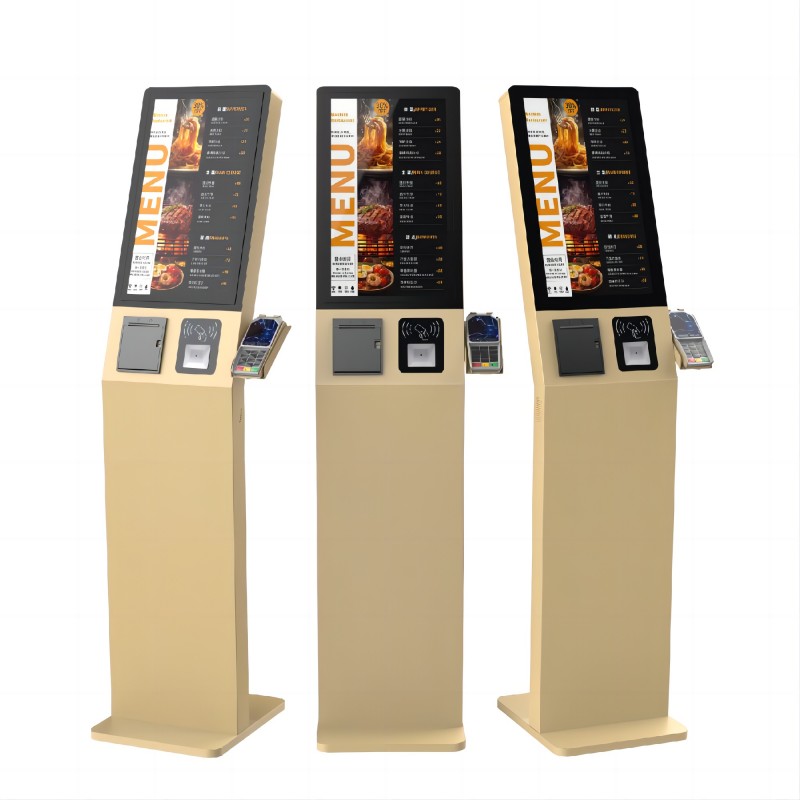

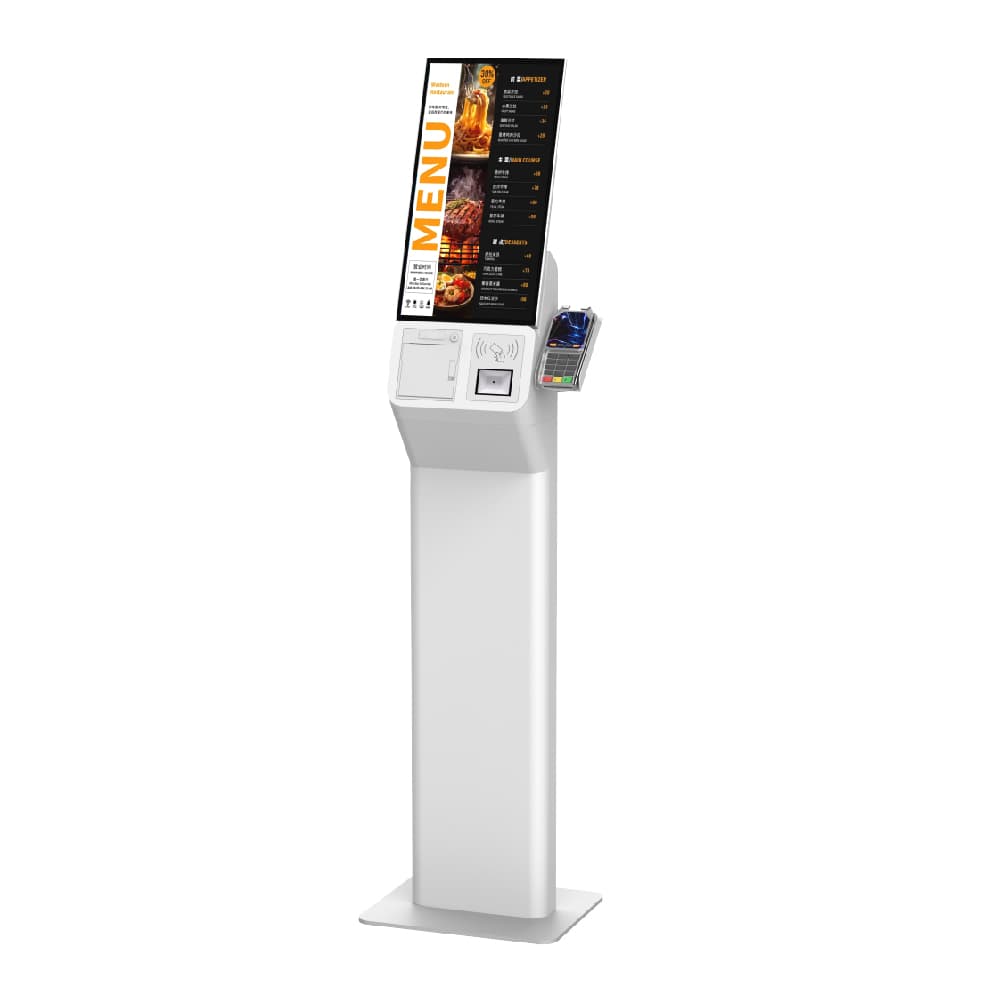

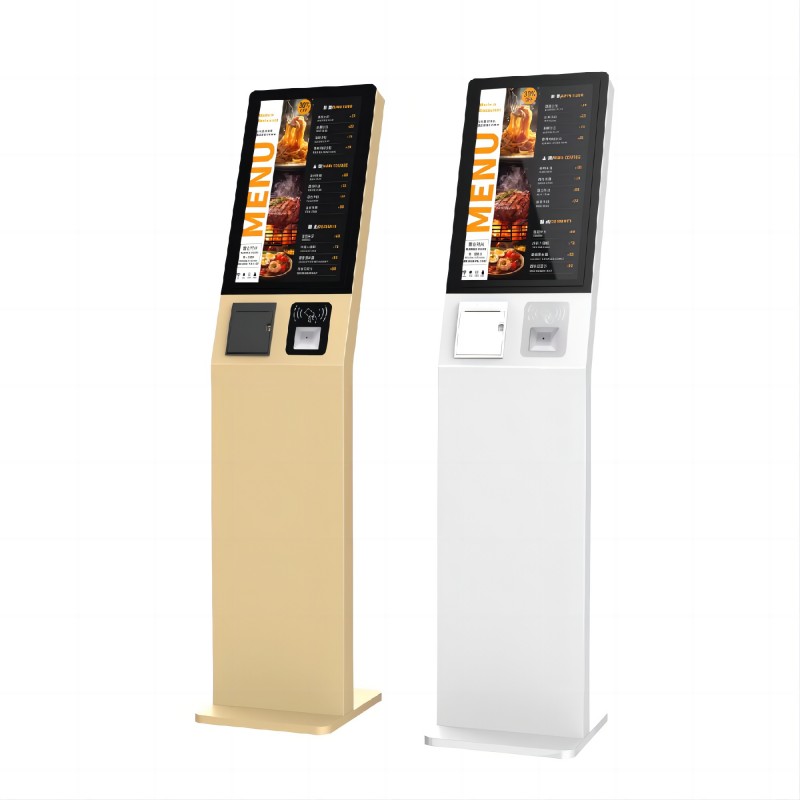

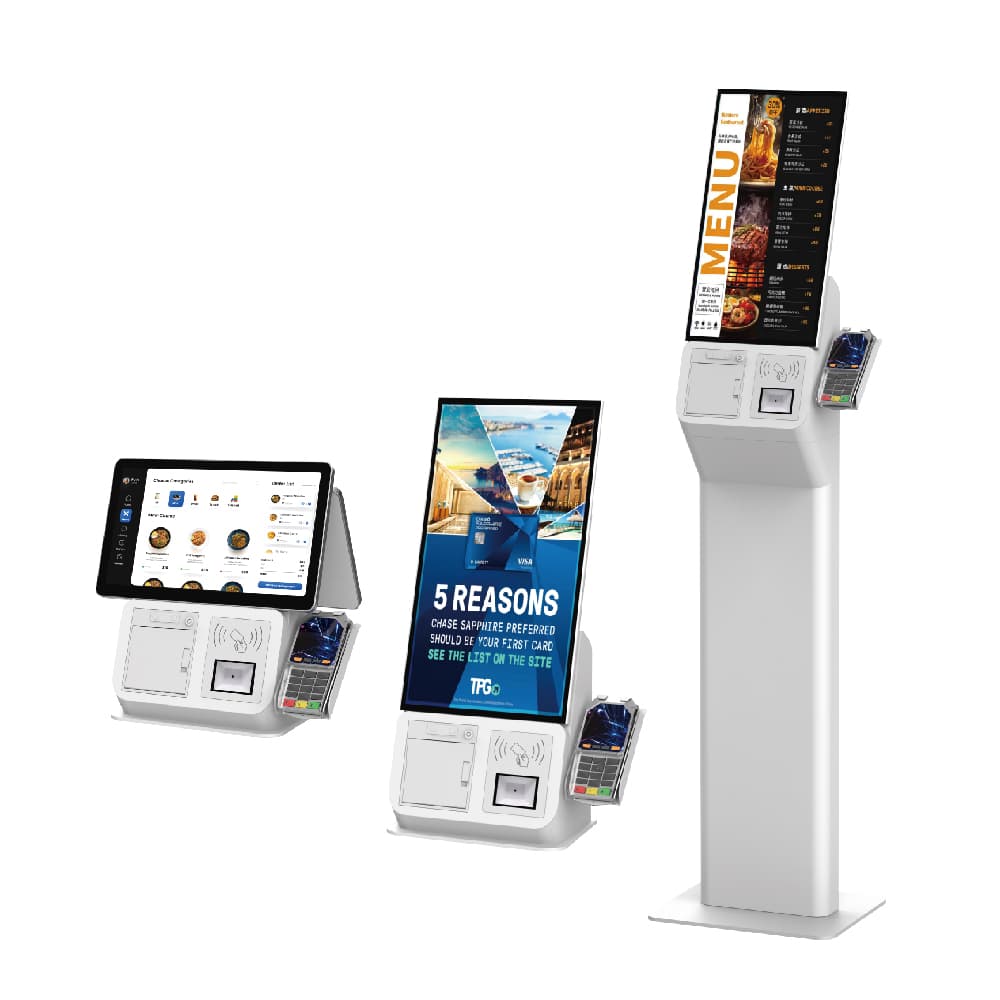

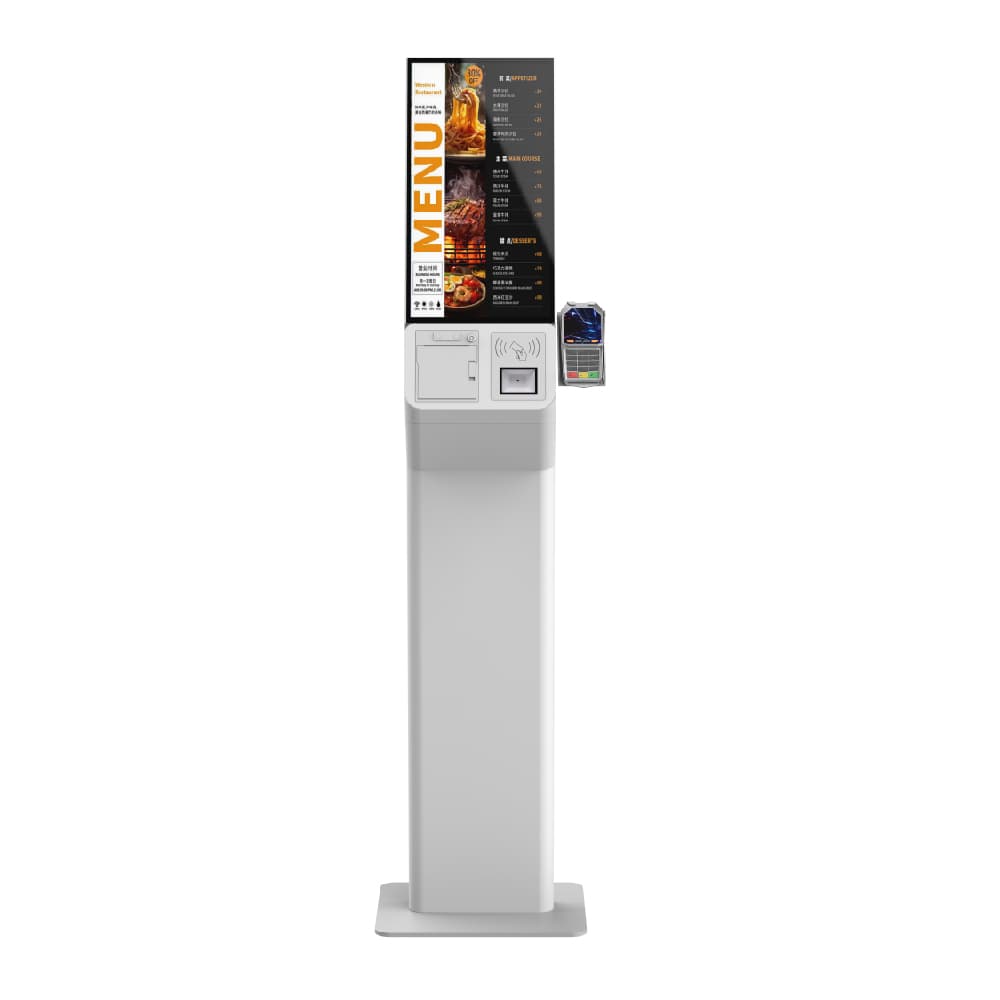

2D Scanner Self Payment Kiosk with High Durability Multi-Payment Methods Secure Data Processing is one type of our self payment kiosks. This self payment kiosk is a high-durability solution designed for fast and secure transactions in retail, healthcare, and transportation environments. Equipped with a 2D barcode scanner, it supports multiple payment methods including QR code, NFC, and card payments. Its secure data processing system ensures safe transactions, while the user-friendly interface enhances customer experience. Ideal for reducing queues, improving service efficiency, and minimizing labor costs.
Stand hardware of self payment kiosk by LKS
| Components | Details |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 |
| RAM | 2GB /4 GB / 8GB |
| HDD | 500G |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card |
| PC Power Supply | HUNTKEY/Great Wall |
| LCD monitor | Screen Size | optional from 8inch to 65inch |
| Brightness | 250cd/m2 |
| angle | horizontal 100°above;Vertical 80°above |
| Contrast | 1000:1 |
| Backlight tube life | more than 40,000hours |
| Max. resolution | 1280×1024 |
| Touch screen | Screen Size | 43 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times |
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card |
| Power Voltage | DC 24V±5% |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal |
| Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
| Key force | 2~3N |
| Key trip | >2.5mm |
| Protection level | ip65 |
| Cashcode Bill acceptor | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way |
| Escrow | One banknote |
| Capacity | 1000 notes Max |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins |
| Accepting Speed | 2 Coins/Sec |
| Supply Voltage | 10V-16V DC |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing |
| Paper width | 80mm |
| Printing speed | 150mm/s |
| Data buffer | 4KB |
| Interface | RS232 ,USB |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va |
| Max time for supplying a single PC | 3~20minutes (for single PC) |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz |
| AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. |
| Operation System | Windows 7 or Windows XP operation system without license |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. |
| Packing | Security Packing method with bubble foam and wooden case |
Features of this self payment kiosk2D Barcode & QR Scanner: Fast and accurate scanning of various codes for payments or customer interactions. Multi-Payment Methods: Supports NFC, EMV, mobile payments, and cash. Secure Data Processing: Advanced encryption and compliance with PCI-DSS standards. Durability: Tamper-resistant design with a rugged steel casing. Easy Maintenance: Modular components allow for quick servicing and upgrades.
| Benefits of this self payment kioskEfficiency: Speeds up transactions, reducing queue times. Customer Experience: Multi-payment methods and easy interface provide convenience. Security: Data encryption and PCI compliance ensure safe transactions. Durability: Long-lasting hardware reduces the need for replacements. Cost-effective: Reduces labor costs and improves overall operational efficiency.
|
Advantages of 2d scanner and Multi-Payment Methods for a self payment kiosk
Integrating a 2D scanner and multi-payment methods into a self payment kiosk offers significant advantages. The 2D scanner enables quick and accurate reading of barcodes and QR codes from both printed receipts and mobile devices, improving transaction speed and accuracy. Multi-payment support—including mobile payment, credit/debit cards, and NFC—enhances customer convenience and broadens accessibility. This combination reduces wait times, supports contactless transactions, and increases operational efficiency for businesses.
Applications
Retail: Use in stores for quick self-checkout or customer assistance. Hospitality: Payments and orders in restaurants, hotels, or cafes. Healthcare: For patient check-in and payment collection. Public Sector: Bill payments or government service transactions. Transportation: Ticketing and self-service payments at stations or terminals.
| Customization OptionsHardware: Customize screen size, scanner type, printer inclusion, or cash acceptance. Software: Integrate specific payment gateways, POS systems, or additional user interface features. Design: Adjust kiosk color, branding, and size to fit your business environment. Payment Configurations: Support for specific regional payment methods (e.g., AliPay, WeChat Pay, etc.).
|
Technical support of self-payment kiosk by LKS24/7 Remote Technical Support: LKS offers round-the-clock remote assistance for software debugging, system configuration, and operational guidance to ensure minimal downtime. Spare Parts Replacement: Key components like the 2D scanner, payment modules, and touchscreen can be replaced with original LKS parts to maintain long-term reliability. Regular System Updates: LKS provides scheduled software and firmware updates to improve security, enhance performance, and ensure compatibility with new payment methods. User Training & Manuals: Comprehensive multilingual user manuals and video tutorials help staff quickly master kiosk operation and maintenance procedures. Global Warranty Coverage: LKS offers a standard 1-year global warranty with optional extensions and customized local support solutions for international clients.
| Purchase ConsiderationsBusiness Needs: Assess the number of transactions and customer types (cash vs. digital) to determine necessary hardware. Budget: Balance between initial costs and long-term ROI for the best value. Integration: Ensure the kiosk integrates smoothly with existing systems like POS or inventory management. Space and Design: Choose a design that fits seamlessly into your store layout without obstructing foot traffic. Support and Warranty: Ensure the manufacturer offers a robust warranty, after-sales support, and software updates.
|
FAQS about this self payment kiosk
What payment methods does this self payment kiosk support?
The self payment kiosk supports multiple payment methods, including NFC, EMV chip cards, magnetic stripe cards, mobile wallets, QR codes, and cash payments, providing flexibility for all customer preferences.
How durable is this self payment kiosk for high-traffic environments?
The self payment kiosk is designed with a high-durability steel casing and a scratch-resistant touchscreen, ensuring it can withstand heavy usage in retail, hospitality, and other high-traffic environments.
How secure is this self payment kiosk for processing sensitive customer data?
This self payment kiosk adheres to PCI-DSS compliance standards, encrypts all transaction data, and features tamper-resistant design elements to ensure high-level security during payment processing.
Can this self payment kiosk be customized for my business needs?
Yes, the self payment kiosk can be fully customized. You can adjust the screen size, select additional hardware like a thermal printer, and integrate specific payment gateways or branding to suit your business environment.
What is the typical cost of this self payment kiosk, and what kind of return on investment (ROI) can I expect?
The cost ranges from $3,000 to $10,000, depending on the hardware and software features selected. Most businesses see a return on investment within 6 to 12 months, primarily due to reduced labor costs and faster transactions.
What maintenance and support options are available for this self payment kiosk?
The self payment kiosk comes with easy-to-maintain modular components, ensuring quick repairs and updates. Additionally, manufacturers provide ongoing technical support, warranty options, and software updates to ensure long-term performance.
